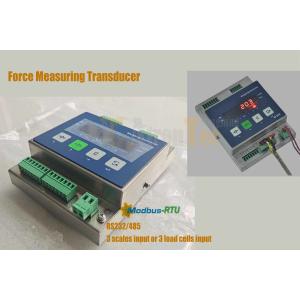

Force Measuring Transducer,LED Display Process Weighing Controller
MODEL:ID203
This weighing controller is a high precision indicator which can support 3 scales input and send the data continuously to PLC or DCS through the MODBUS-RTU or serial interface. The stainless steel DIN Rail housing enables this weighing controller to be applied in complex and harsh environment.
Main Features:
* 6 bits,0.28",7.1mm high red LED display,4 status lights;
* 100,000 display division,high accuracy,CMC6000e;
* 200Hz A/D speed,200 times/second target comparision;
* 5-setp dynamic filter,high level shake proof;
* Standard RS232/485,support MODBUS-RTU communication and continuous output;
* Transfer weight to PLC or DCS system;
* Remote calibration through MODBUS-RTU;
* MODBUS-RTU read the weight for 3 scales;
* Support the calibration without the weights;
* DIN Rail housing
Specifications:
| Accuracy | |
| Accuracy Class | III |
| EU Approval | 100,000 Display Division, CMC 6000e |
| Display & Keypad | |
| Display | 6 bits 7-segment red LED display, 0.28” high |
| Update Speed | 250ms |
| Status Display | Gross, Net, Motion, Center of Zero, Scale |
| Key | 4 function keys(Tare, Clear, Zero, Print) |
| ADC | |
| Type | 24-bit |
| Speed | 200 Hz |
| Resolution | 0.06uV/d |
| Resolution Approved | 1uV/e |
| Input | 0.1mV to 19mV |
| Accuracy | 100,000d |
| Linearity and Stability | |
| In-linearity & TC | ≤0.0015% FS; ≤5ppm/℃ |
| Load Cell | |
| Exciting Voltage | 5V DC, max 150mA |
| Load Cell Number | 3 Scales, each scale with Max 4 x 350Ω |
| Connect Type | 4- wired or 6-wired, Cable:274mR/m2 |
| Scale Basic Functionality | |
| Calibration | 2-point with testing weight and Free Calibration |
| Filter | 5-step |
| Scale Process | Tare, Zero, Auto Zero, Motion |
| Inputs | None |
| Outputs | None |
| Target Control | None |
| Communication I/F | |
| Serial Port | 1 ports: RS232/485 |
| Continuous Output | 10ms ~ 20ms (100~50 Hz) |
| MODBUS-RTU | Report each scale weight and do Calibration with each scale |
| Housing | DIN Rail |
| Power Supply | 24VDC |
| Working Condition | |
| Temperature | -10℃~40℃, 95％ RH |
| Power Supply | 24VDC, 6W |
For Tension testing
Outline and Mounting Size:
